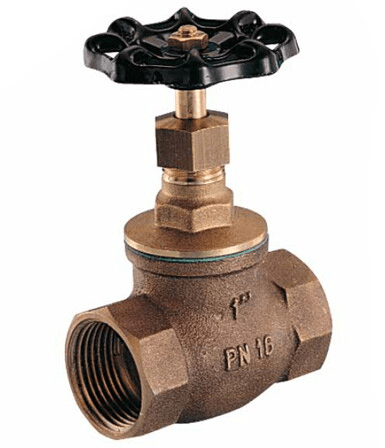

GENEBRE 3228 PN16 shut-off valve, body- bronze (CC491K), brass (CW614N), PTFE, BP/BP, steering wheel, BSPP thread
Model 3228 / Article 3228
Genebre shut-off valve
Description:
1.Operating pressure PN16
2.Ideal for hot and cold water supply and various oils
3.Internal thread according to ISO228
4.Рабочая температура до : 16 бар 20 °С и 12 бар 200 °С
| BASIC PARAMETERS |
| Model | Size | PN | P | A | L | M | Weight (g.) |
| 3228 03 3228 04 3228 05 3228 06 3228 07 3228 08 3228 09 |
3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" |
16 16 16 16 16 16 16 |
10 15 20 25 30 40 50 |
67 80 85 94 106 118 127 |
45 50 62 71 85 90 110 |
50 50 50 60 70 80 80 |
181 265 400 550 875 1135 1790 |
In the Salutech catalog you will find modern coupling valves of various types. Genebre 3228 is one of the most popular models of shut–off valves, characterized by an affordable price and excellent workmanship.
The inner surface of the Genebre coupling valves practically does not interfere with the movement of the medium, which significantly reduces pressure losses. The convenient shape and dimensions of the handle ensure reliable locking, as well as smooth adjustment over the entire range.
Are you unsure if the 3228 series shut-off valves are suitable for a specific facility? It is always possible to get detailed advice from Salutech managers. All ordered fittings will be shipped immediately after payment.
