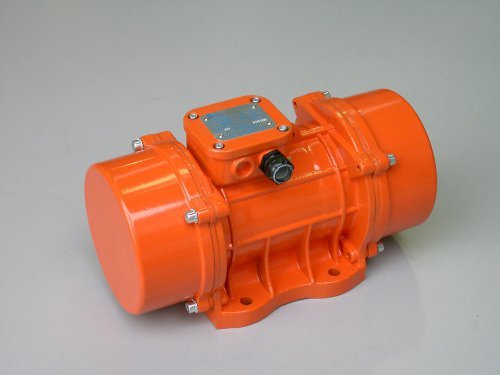

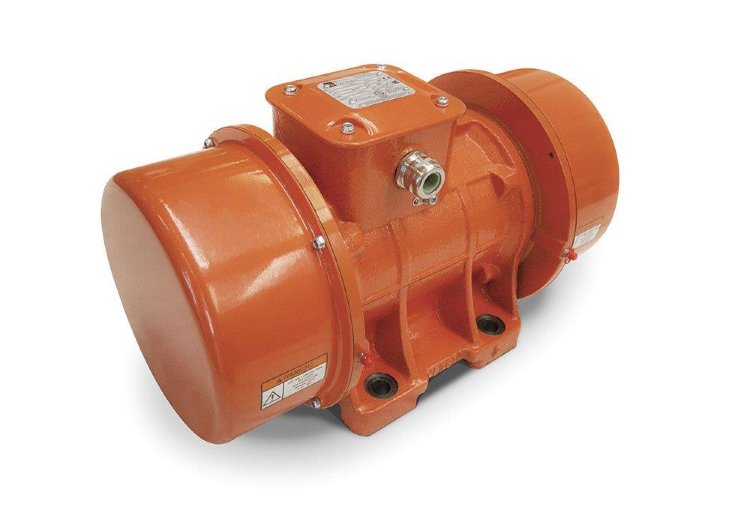

Vibrator pad MVE 1100/1E-60A0 (1100/1)

MVE1100/1 Electric Vibrator pad 1000ob/min 10.48kN 0.75kW 1.42A 230/400V 79.4kg

The standard series of MVE 6-pole pad vibrators with a frequency of 1000 rpm. This type of pad vibrators provides centrifugal force from 53 to 25532 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

The MVE 1100/1 pad vibrator, an analogue of the IV-12-25, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.

 Article number E601100

• Number of votes 1
• Manufacturer OLI S.P.A
• Rating 3.3
• The sum of the ratings is 5
• Length (mm) 510
• Width (mm) 229
• Height (mm) 261.5
• Gross weight (kg) 79.4
• Power (kW)              0.75
• Connection type star
• Working torque (kg*cm)            187.69
• Driving force (kG)             1048
• Voltage (V) 400
• Current strength (A max)          1.42
