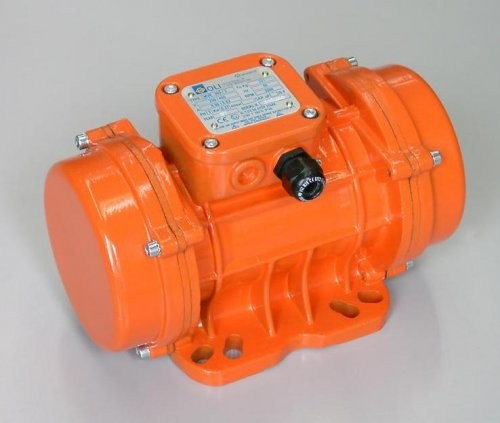

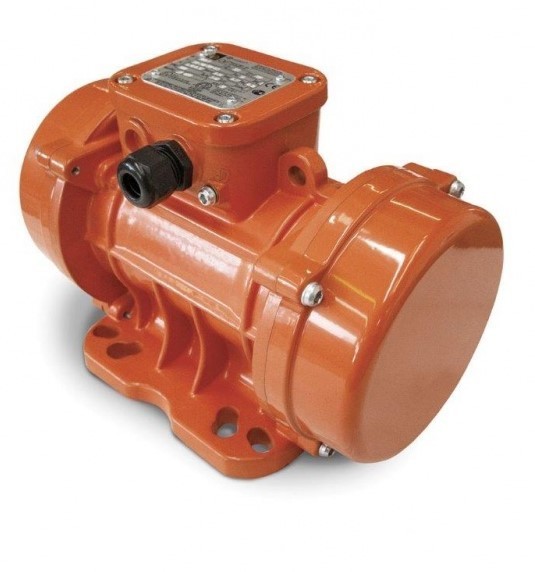

Vibrator pad MVE 200/15E-30A0 (200/15)

MVE200/15 Electric Vibrator Pad 1500ob/min 1.94kN 0.16kW 0.49A 230/400V 11.8kg

The MVE 200/15 pad vibrator, an analogue of the IV-127, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.

Operational qualities and advantages:

• Motor protection IP 66 - NEMA 4
• Insulation class F
• 750 /1.000 /1.500 /3.000 rpm
• The power supply is single-phase 220V and three-phase 380V
• Compliance With European Standards:
• Low voltage 73/23/EEC

• Article number E400200
• Manufacturer OLI S.P.A
• Length (mm) 237
• Width (mm) 154
• Height (mm) 175
• Gross weight (kg) 11.8
• Power (kW)              0.16
• Connection type star
• Working torque (kg*cm)            14.44
• Driving force (kG)             194
• Voltage (V) 400
• Current strength (A max)          0.49
