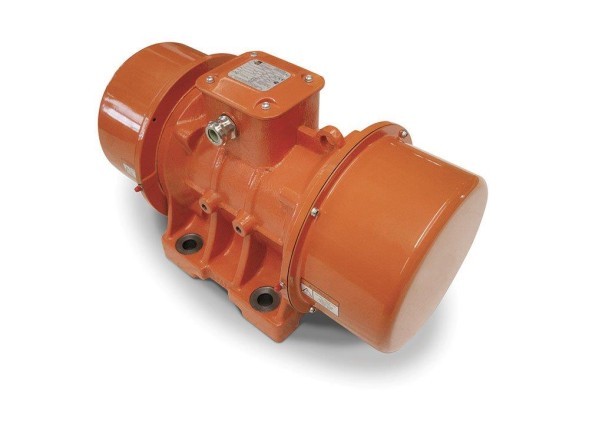

Vibrator pad MVE 2100/1N-70A0 (MVE 2100/1)

MVE2100/1 Electric Vibrator Pad 1000ob/min 20.84kN 1.5kW 3.0A 230/400V 114.3kg

The MVE 2100/1 pad vibrator, an analogue of the IV-23-16, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance.

Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.

Operational qualities and advantages:

• Motor protection IP 66 - NEMA 4
• Insulation class F
• 750 /1.000 /1.500 /3.000 rpm
• The power supply is single-phase 220V and three-phase 380V
• Compliance With European Standards:
• Features

  Working moment, cmkg

  400

  Centrifugal force, kN

  20,84

  Power, kW:

  1,5

  Rotation speed, rpm

  1000

  Rated current, A

  3,0

  Power Supply, In

  ~ 400V AC

  Weight, kg

  114,3

  Brand

  OLI
