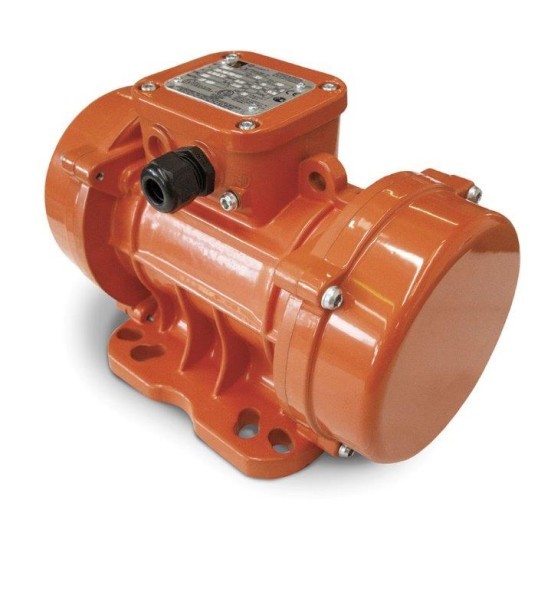

MVE 300/3N(E)-30A0 (300/3) Pad Vibrator
Article number EN(E)200300A0JA0000
- Length (mm) 253
- Width (mm) 154
- Height (mm) 175
- Gross weight (kg) 9.8
- Power (kW) 0.27
- Connection type star
- Working torque (kg*cm) 6.39
- Driving force (kG) 321
- Voltage (V) 400
- Current strength (A max) 0.52
The standard MVE series of pad vibrators is used in almost all industries. The MVE standard series pad vibrator provides centrifugal force from 20 to 26,000 kg with 2, 4, 6 or 8 poles.
The MVE pad vibrator is available in single- and three-phase versions, as well as in 12 and 24 VDC versions for use in automobiles. MVE is certified by ATEX ExII3D and ETL, Class II, Division 2 for use in the presence of potentially flammable powders.
- DC Direct Current (3000 rpm)
- DC Direct Current (3000 rpm)
The standard series of site vibrators is DC Direct current with a frequency of 3000 rpm.
- MICRO MVE three-phase (3000 rpm)
- MICRO MVE three-phase (3000 rpm)
The standard series of MICRO MVE pad vibrators is three-phase with a frequency of 3000 rpm.
- MICRO MVE single-phase (3000 rpm)
- MICRO MVE single-phase (3000 rpm)
The standard series of MICRO MVE site vibrators is single-phase with a frequency of 3000 rpm.
- MVE 2 poles (3000 rpm)
- MVE 2 poles (3000 rpm)
The standard series of MVE 2 pole pad vibrators with a frequency of 3000 rpm.
- MVE 2 poles single-phase (3000 rpm)
- MVE 2 poles single-phase (3000 rpm)
The standard series of MVE 2 pole pad vibrators is single-phase with a frequency of 3000 rpm.
- MVE 4 poles (1500 rpm)
- MVE 4 poles (1500 rpm)
The standard series of MVE 4-pole pad vibrators with a frequency of 1500 rpm.
- MVE 6 poles (1000 rpm)
- MVE 6 poles (1000 rpm)
The standard series of MVE 6-pole pad vibrators with a frequency of 1000 rpm.
- MVE 8 poles (750 rpm)
- MVE 8 poles (750 rpm)
The standard series of MVE 8-pole pad vibrators with a frequency of 750 rpm.
- MVE 10 poles (600 rpm)
- MVE 10 poles (600 rpm)
The standard series of MVE 10 pole pad vibrators with a frequency of 600 rpm.
- Vibrators for formwork MVE-HF high frequency
- Vibrators for formwork MVE-HF high frequency
High-frequency MVE platform vibrators for formwork with a frequency of 6000 rpm.
