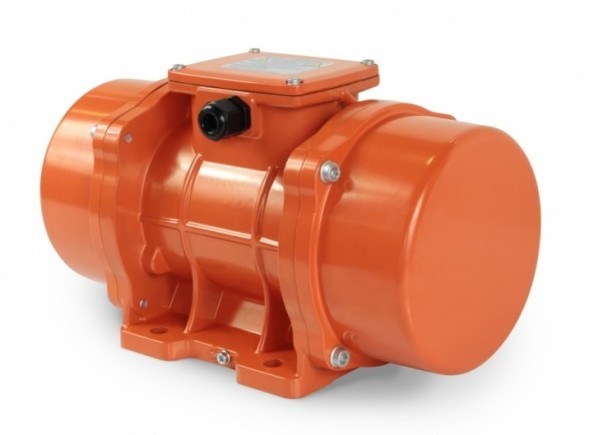

MVE 500/15N-40A0 (MVE 500/15) pad vibrator
The MVE 500/15 pad vibrator, an analogue of the IV-104, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.
Operational qualities and advantages:
- Motor protection IP 66 - NEMA 4
- Insulation class F
- 750 /1.000 /1.500 /3.000 rpm
- The power supply is single-phase 220V and three-phase 380V
- Compliance With European Standards:
- Low voltage 73/23/EEC
- EMC 89/336/EEC, 98/37/EEC
- ATEX 94/9/EEC
- Excellent value for money
The standard MVE series of pad vibrators is used in almost all industries.
The MVE standard series pad vibrator provides centrifugal force from 20 to 26,000 kg with 2, 4, 6 or 8 poles. The MVE pad vibrator is available in single- and three-phase versions, as well as in 12 and 24 VDC versions for use in automobiles. MVE is certified by ATEX ExII3D and ETL, Class II, Division 2 for use in the presence of potentially flammable powders.
The standard series of MVE 4-pole pad vibrators with a frequency of 1500 rpm. This type of pad vibrators provides centrifugal force from 25 to 14352 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.
Article number EN40050040A0JA0000
- Manufacturer OLI S.P.A
- Length (mm) 334
- Width (mm) 168
- Height (mm) 196
- Gross weight (kg) 21
- Power (kW) 0.35
- Connection type star
- Working torque (kg*cm) 40.12
- Driving force (kG) 504
- Voltage (V) 400
- Current strength (A max) 1.06
