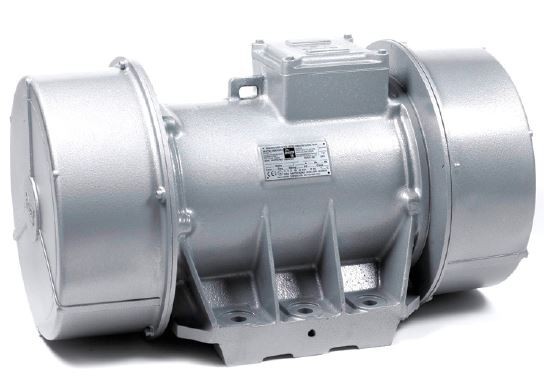

Electromechanical pad vibrators BLz from the company Invicta They are represented by a wide range of power solutions for performing various technological operations related to active vibration action. A popular offer for compacting building mixes, unloading bunkers, equipping vibrating tables, screens, transporting bulk materials, etc. Circular vibrations are generated by an electric motor due to the displacement of the center of gravity by eccentric loads.
The design of the vibrators is completely sealed to prevent dust and water from entering the electric machine. The housing is made of aluminum alloy (according to BLz24 size) or cast iron with spherical graphite (for sizes over BLz24). Maintenance-free ball bearings are installed on small sizes, and with the BLz25 model, the support units are reinforced with roller bearings.
This product line is suitable for use in difficult production conditions, including in explosive zones 21 and 22, according to ATEX.
Technical characteristics of Invicta BLz series pad vibrators
- Centrifugal (driving) force: 216 - 309015 N;
- Static moment: 2.2 - 7074 kg·cm;
- Rated power: 0.07 - 12.5 kW;
- Power consumption: 0.143 - 15.4 kW;
- Supply voltage: 400 V AC;
- Rotation speed: 720 /960 /1440 /2880 rpm;
- The degree of protection of the case: IP66;
- Insulation class: F;
- Operating temperature range: -20 … +40 °C.
Standard sizes of Invicta BLz motor vibrators (2-pole version, 2880 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
BLz03 - 1/2 | 981 | 2,2 | 120 |
BLz05 - 2/2 | 1962 | 4,3 | 200 |
BLz15 - 3.5/2 | 3433 | 7,6 | 300 |
BLz20 - 5/2 | 4905 | 10,8 | 400 |
BL22 - 5/2 | 4905 | 10,8 | 400 |
BLz24 - 8/2 | 7848 | 17,2 | 500 |
BLz24 - 10/2 | 9810 | 21,6 | 500 |
BLz24 - 13/2 | 12753 | 28 | 500 |
BLz25 - 8/2 | 7848 | 17,2 | 500 |
BLz25 - 10/2 | 9810 | 21,6 | 500 |
BLz25 - 13/2 | 12753 | 28 | 500 |
BLz30 - 16/2 | 15696 | 34,5 | 1100 |
BLz30 - 20/2 | 19620 | 43,2 | 1100 |
BLz40 - 30/2 | 29430 | 64,7 | 1500 |
BLz40 - 40/2 | 39240 | 86,3 | 1500 |
BLz45 - 50/2 | 49050 | 108 | 4000 |
Standard sizes of Invicta BLz motor vibrators (4-pole version, 1440 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
BLz03 - 0.5/4 | 490 | 4,3 | 100 |
BLz05 - 1/4 | 981 | 8,6 | 175 |
BLz05 - 2/4 | 1962 | 17,2 | 175 |
BLz15 - 3/4 | 2943 | 26 | 300 |
BLz20 - 5/4 | 4905 | 43,1 | 350 |
BL22 - 5/4* | 4905 | 43,1 | 350 |
BLz24 - 7.5/4 | 7357 | 64,7 | 500 |
BLz24 - 11/4 | 10790 | 94,9 | 500 |
BLz24 - 14/4 | 13735 | 121 | 500 |
BLz25 - 7.5/4 | 7357 | 64,7 | 500 |
BLz25 - 11/4 | 10790 | 94,9 | 500 |
BLz25 - 14/4 | 13735 | 121 | 500 |
BLz30 - 18/4 | 17658 | 155 | 1150 |
BLz30 - 25/4 | 24525 | 216 | 1150 |
BLz40 - 35/4 | 34335 | 302 | 1800 |
BLz45 - 45/4 | 44145 | 388 | 2685 |
BLz50 - 55/4 | 53955 | 474 | 3350 |
BLz50 - 65/4 | 63765 | 560 | 4800 |
BLz50 - 75/4 | 73575 | 647 | 4800 |
BLz60 - 95/4 | 93195 | 820 | 7750 |
BLz60 - 105/4 | 103000 | 906 | 7750 |
BLz75 - 130/4 | 127530 | 1122 | 10250 |
Standard sizes of Invicta BLz motor vibrators (6-pole version, 960 rpm)
Type vibration motors | Centrifugal force, N | Static moment, kg ·cm | Power, Tue |
Code 03 -0.2/6 | 216 | 4,3 | 70 |
Code 05 -0.4/6 | 392 | 7,8 | 90 |
Code 05 -0.9/6 | 883 | 17,5 | 90 |
Code 15 -1.3/6 | 1275 | 25,2 | 110 |
Code 20 -2.2/6 | 2158 | 42,7 | 150 |
BL 22 -2.2/6* | 2158 | 42,7 | 150 |
BLz 24 -4/6 | 3924 | 77,6 | 510 |
BLz 24 -8/6 | 7848 | 155 | 510 |
Code 24 -11/6 | 10790 | 213 | 510 |
BLz 25 -4/6 | 3924 | 77,6 | 510 |
BLz 25 -8/6 | 7848 | 155 | 510 |
Code 25 -11/6 | 10790 | 213 | 510 |
Code 30 -14/6 | 13734 | 271 | 900 |
Code 30 -18/6 | 17658 | 349 | 900 |
Code 30 -23/6 | 22563 | 446 | 900 |
Code 40 -27/6 | 26487 | 524 | 1800 |
Code 40 -35/6 | 34335 | 680 | 1800 |
Code 45 -42/6 | 41200 | 815 | 2310 |
Code 45 -50/6 | 49050 | 970 | 2310 |
Code 50 -60/6 | 58860 | 1164 | 4000 |
Code 50 -75/6 | 73575 | 1455 | 4000 |
BL 50 -80/6* | 76556 | 1515 | 4000 |
Code 60 -90/6 | 88290 | 1746 | 6200 |
Code 60 -105/6 | 103000 | 2037 | 6200 |
Code 61 -105/6 | 103000 | 2037 | 6200 |
Code 60 -125/6 | 122625 | 2425 | 10000 |
Code 61 -125/6 | 122625 | 2425 | 10000 |
Model NO.: 75 -150/6 | 147150 | 2910 | 10000 |
Model NO.: BLz 75 -185/6 | 181485 | 3589 | 10000 |
Code 77 -185/6 | 181485 | 3589 | 10000 |
Model NO.: 78 -165/6 | 161865 | 3201 | 10000 |
Code 78 -185/6 | 181485 | 3589 | 10000 |
Code 80 -230/6 | 225630 | 4462 | 12500 |
Code 80 -270/6 | 264870 | 5238 | 12500 |
Code 80 -315/6 | 309015 | 6111 | 12500 |
Standard sizes of Invicta BLz motor vibrators (8-pole version, 720 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg ·cm | Power, Tue |
BLz30 - 7.5/8 | 7357 | 259 | 500 |
BLz30 - 10/8 | 9810 | 345 | 500 |
BLz40 - 15/8 | 14715 | 517 | 1100 |
BLz45 - 24/8 | 23838 | 838 | 2000 |
BLz50 - 35/8 | 34335 | 1207 | 3300 |
BLz50 - 45/8 | 44145 | 1552 | 3300 |
BLz50 - 55/8 | 53955 | 1897 | 3300 |
BLz60 - 65/8 | 63765 | 2242 | 4900 |
BLz60 - 90/8 | 88290 | 3105 | 4900 |
BLz75 - 124/8 | 121644 | 4279 | 7750 |
BLz75 - 135/8 | 132435 | 4658 | 7750 |
BLz75 - 150/8 | 147150 | 5174 | 7750 |
BLz80 - 205/8 | 201105 | 7074 | 10000 |
* only for normal conditions
