Technical specifications
Designation : 23076-E1A-K-MB1
Dimensions, mm : 380x560x135
Manufacturer : FAG
Inner diameter, mm : 380
Outer diameter, mm : 560
Height, mm : 135

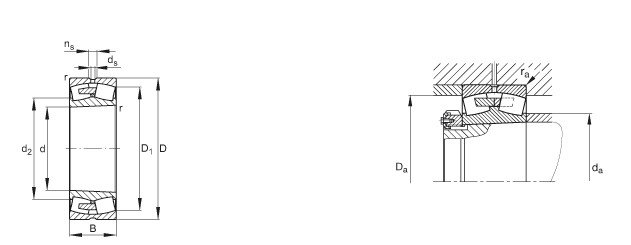

Technical data from the manufacturer's catalog :
d - 380 mm
D - 560 mm
B - 135 mm
D1 - 508,1 mm
Da max - 542 mm
da min - 398 mm
ds - 12,5 mm
ns - 23,5 mm
ra max - 4 mm
rmin - 5 mm
M - 109 kg /Weight
Cr - 2900000 N /dynamic load capacity, radial
e-0.21
Y1 - 3,17
Y2 - 4,72
C0r - 5000000 N /static load capacity, radial
Y0 - 3,1
nG - 1230 1/min /Maximum speed
nB - 750 1/min /Basic thermal speed
Why - 410000 N
Basic dimensions according to DIN 635-2, with a conical hole, taper 1:12
