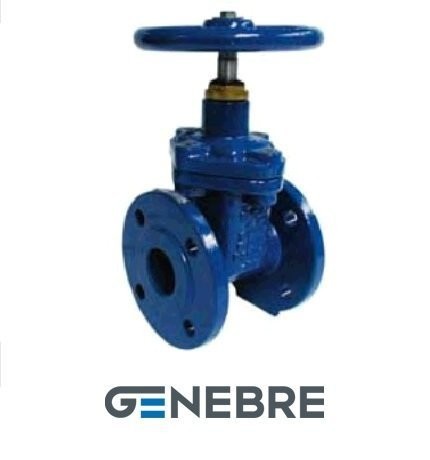

Wedge gate valve Genebre GGG50 /EPDM Tmax=+120oC flanged

Gate valve with rubberized wedge /EPDM/

Description

1. Gate valve with electric lock

2. Made of cast iron of the GGG-40 brand

3. The wedge is covered with EPDM

4. Non-movable rod

5. Complies with DIN 3352 standards

6. Flange spacing according to DIN 3202 F4 standards

7.Flange connections according to DIN 2501 PN 16 standards

8.Scope of application : water supply and sewerage systems

9.Full-bore with minimal pressure loss

10.Two-way installation

11.The body coating inside and outside is epoxy resin

12. Max. operating temperature 120°C



The gate valve is one of the most used types of shut–off valves for medium and large diameter pipelines. The gate valve has a round shape and covers the pipeline, entering its lumen across the axis. It is often possible to see flanged cast iron wedge valves on pipelines, which are characterized by reliability,
