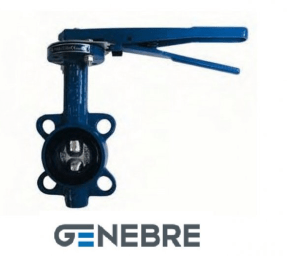

The GENEBRE 2109 flanged rotary shutter is made in a cast-iron housing with a stainless steel adjusting disc. The device performs the function of regulating the intensity of the flow of liquid medium through the pipeline with the possibility of hermetically sealing. The degree of lumen of the pipe is regulated by rotating the disc around its axis. It is used in water supply, heating systems and oil pipelines.
1. Rotary disc shutter with handle, flanged.
2. The body is made of cast iron of the GG-20 brand. Can be installed
between ANSI 150 and DIN PN 10/16 flanges.
3. It is possible to install the drive according to ISO 5211 – DIN 3337 standards
4. The distance between the flanges according to the standard UNE EN 558-1
series 20 (DIN 3202 K1)
5. Painted by epoxy spraying
6. The maximum operating temperature is 120 °C
Features
Diameter DN, mm
125
Pressure PN, bar
16
Housing material
чугунный
Joining:
межфланцевый
Working environment
Вода
Brand
Genebre
