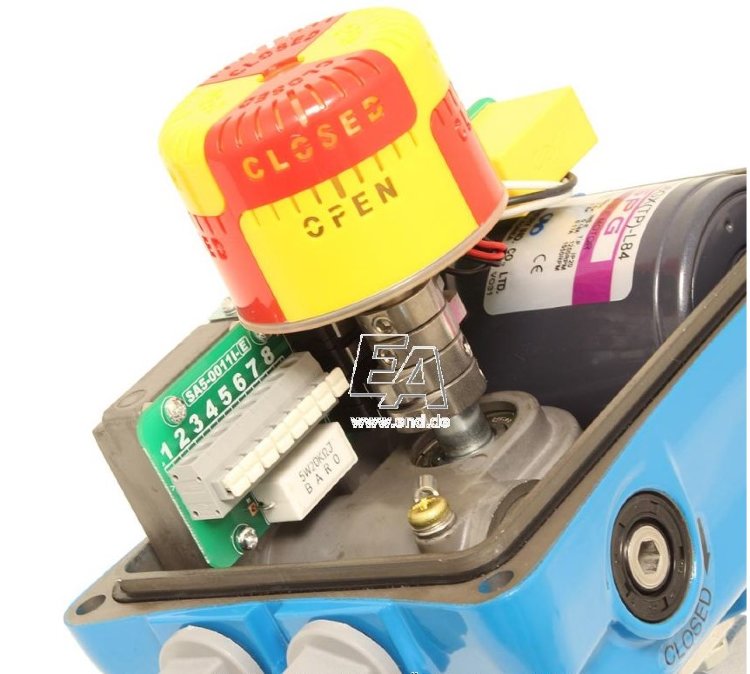

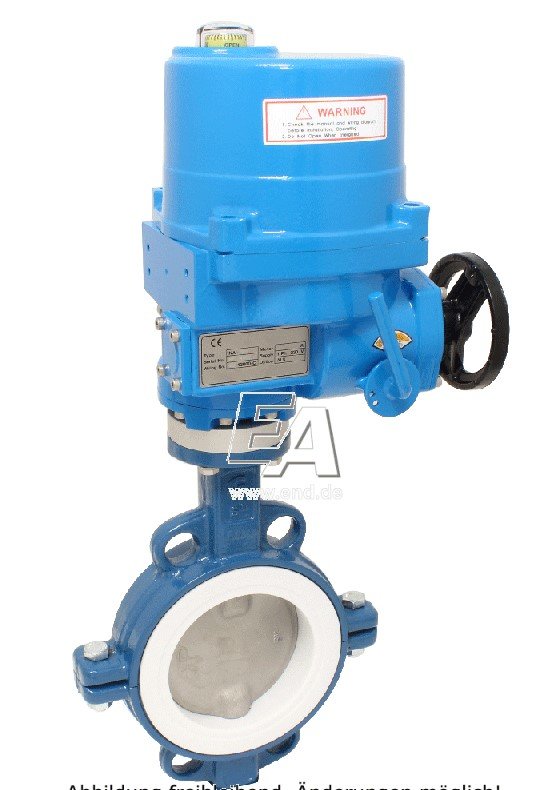

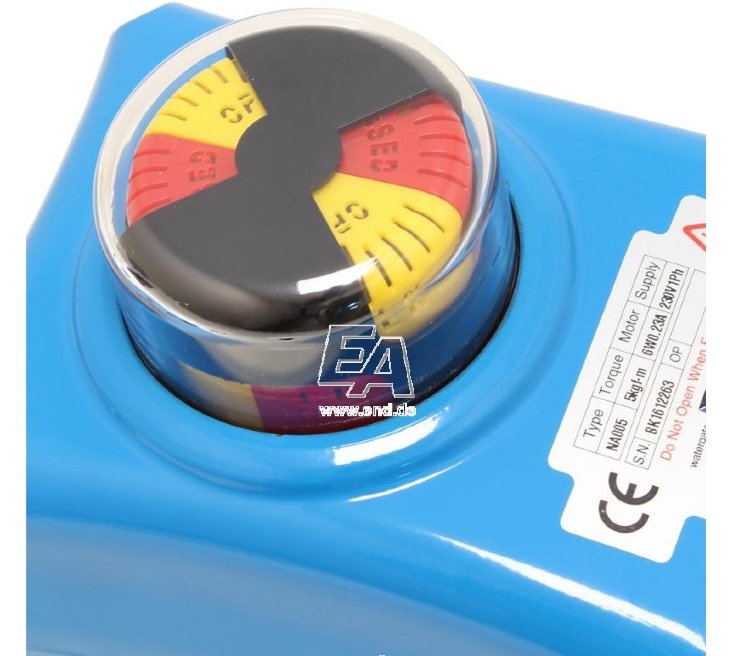

Rotary disc shutter-TA, DN50, with drive NE05 GGG/stainless steel. steel/PTFE230V 50Hz, time. srab. 14sec

TA531107-NE054100 Rotary disc shutter-TA, DN50, with drive NE05 GGG/stainless steel. steel/PTFE230V 50Hz, time. srab. 14sec

Additional information

• Execution -
• The body is grey cast iron
• Connection Between the flange
• Triggering Electric
• Size DN50
• PTFE seal
• Voltage 230V AC
• Temperature of the measured medium [°C] -60
• Temperature of the measured medium [°C] 190
• Ambient temperature [°C] -20
• Ambient temperature [°C] 70
• Operating pressure [bar] 0
• Features

  Weight, kg

  6,48

  Brand

  END
