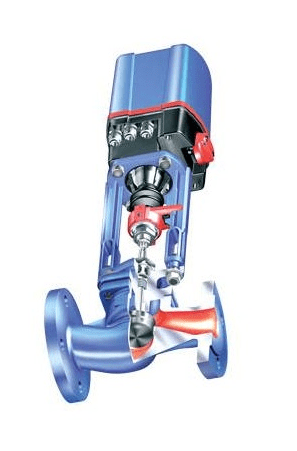

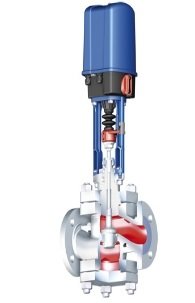

Control valve 12.422 ARI-STEVI® Pro PN16 EN-JL1040/count fl (DN200 Kvs=630 with priv. Auma SAR 10.2, IP68 400V, pot., K.off)

12.422 ARI-STEVI® Pro Control valve with electric actuator Auma PN16, EN-JL1040/graphite Tmax=+300oC flanged

124220200G1 ARI-STEVI® Pro Series 422 Flanged control valve with electric drive - through

Construction

• Body material: : ENJL1040 –grey cast iron
• Nominal diameter : DN 200
• Nominal pressure : PN 16
• Type of connection : flanged,
• repeat shape [connecting protrusion]
• DIN EN1092-1-,2 form B
• Kvs Value : 630
• Characteristic : equal to one percent
• Shutter : slotted shutter
• Max. : 16 bar
• Seat : threaded
• Leakage class : IV according to DIN EN 60534-4
• Stem seal : pure graphite oil seal (Tmax: +300°C)

Drive : Auma SAR 10.2, IP68

• Voltage : 400 V 50Hz 3~
• Rotation speed : 11 rpm.
• Power consumption : 0.06 kW
• Travel time : 55 seconds
• Closing pressure max. (bar) : 13.9
• Control pressure (bar) : 6.6

Additional equipment :

• a 1.000 Ω potentiometer complete with a gearbox for
• speed reading (gear device);
• dual limit switches on the go (tandem travel
• switches);
• dual torque limit switches (tandem
• torque switches)

Areas of application:

• industrial installations,
• production process technologies,
• construction of installations and equipment, etc.

Wednesday:

• cooling liquid,
• cooling brine,
• heated and hot water,
• water vapor,
• gas , etc .

Areas of application (Bellows nozzle):

• industrial installations,
• production process technologies,
• construction of installations and equipment, etc.

Media (Bellows nozzle):

• refrigerants,
• cooling liquid,
• heated and hot water,
• coolant oil,
• water vapor,
• gas , etc .

Areas of application (tool steel):

• industrial installations,
• production process technologies,
• construction of installations and equipment, etc.

Media (tool steel):

• refrigerants,
• cooling liquid,
• heated and hot water,
• coolant oil,
• water vapor,
• gas,
• alkaline solutions,
• acids,
• deionized water,
• purified steam, etc.
