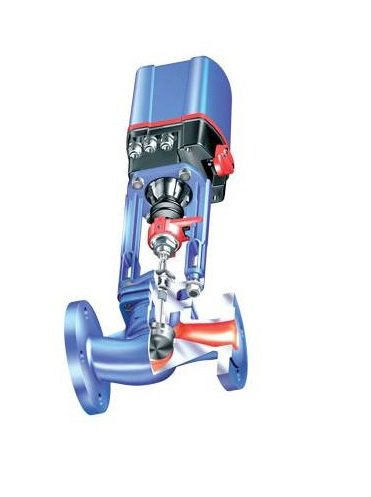

12.440 ARI-STEVI® Smart Control valve with electric actuator Auma PN16, EN-JL1040/graphite Tmax=+300oC flanged
124400150G1 ARI-STEVI® Smart Series 440 Flanged control valve with electric drive - through
Construction
- Body material: : ENJL1040 –grey cast iron
- Nominal diameter : DN 150
- Nominal pressure : PN 16
- Type of connection : flanged,
- repeat shape [connecting protrusion]
- DIN EN1092-1-,2 form B
- Kvs Value : 400
- Characteristic : equal to one percent
- Shutter : slotted shutter
- Max. : 10 bar
- Leakage class : IV according to DIN EN 60534-4
- Stem seal : pure graphite oil seal (Tmax: +300°C)
Drive : Auma SAR 07.2, IP68
- Voltage : 400 V 50Hz 3~
- Rotation speed: 8 rpm.
- Power consumption : 0.04 kW
- Travel time : 94 seconds
- Closing pressure max. (bar) : 8.3
- Control pressure (bar) : 3.7
Additional equipment :
- a 1.000 Ω potentiometer complete with a gearbox for
- speed reading (gear device);
- dual limit switches on the go (tandem travel
- switches);
- dual torque limit switches (tandem
- torque switches)
Areas of application:
- industrial installations,
- production process technologies,
- construction of installations and equipment, etc.
Wednesday:
- cooling liquid,
- cooling brine,
- heated and hot water,
- water vapor,
- gas , etc .
Areas of application (Bellows nozzle):
- industrial installations,
- production process technologies,
- construction of installations and equipment, etc.
Media (Bellows nozzle):
- refrigerants,
- cooling liquid,
- heated and hot water,
- coolant oil,
- water vapor,
- gas , etc .
Areas of application (tool steel):
- industrial installations,
- production process technologies,
- construction of installations and equipment, etc.
Media (tool steel):
- refrigerants,
- cooling liquid,
- heated and hot water,
- coolant oil,
- water vapor,
- gas,
- alkaline solutions,
- acids,
- deionized water,
- purified steam, etc.
Features
Joining:
фланцевый
Brand
Ari Armaturen
