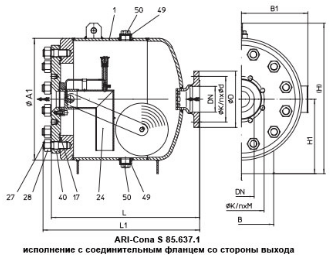

Float steam traps ARI-Cona S 637.1 PN40, (Tmax=450oC)
Application: ARI-CONA S/SC float condensate trap is used for installation in the systems of food, pharmaceutical, pulp and paper, petrochemical, chemical industries. It is used in energy and metallurgy. The main purpose is operation in steam supply systems.
Working environment ARI-CONA S/SC float steam trap is used to work with steam and condensate.
Features: Economical in operation – due to the presence of check valves and built-in filters. A regulator with an integrated automatic deaeration system (exception – BR629/636). Removal of boiling condensate without backstop, including under extreme fluctuations in volume and pressure. Rigid design of the condensate trap, which has high resistance to hydraulic shocks.
- Nominal pressure: 16/25/40/63/100/160
- Body material: body and lid - grey cast iron
- Temperature: from -60 to +550 C when installing a drainage condensate drain
- Standard Size (DN): DN15-DN100
Application: ARI-CONA S/SC float condensate trap is used for installation in the systems of food, pharmaceutical, pulp and paper, petrochemical, chemical industries. It is used in energy and metallurgy. The main purpose is operation in steam supply systems.
Working environment ARI-CONA S/SC float steam trap is used to work with steam and condensate.
Features: Economical in operation – due to the presence of check valves and built-in filters. A regulator with an integrated automatic deaeration system (exception – BR629/636). Removal of boiling condensate without backstop, including under extreme fluctuations in volume and pressure. Rigid design of the condensate trap, which has high resistance to hydraulic shocks.
Features
Diameter DN, mm
80
Pressure PN, bar
16
Housing material
стальной
Joining:
фланцевый
Working environment
пар
Brand
Ari Armaturen
