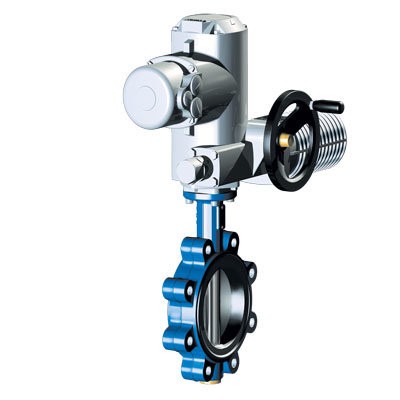

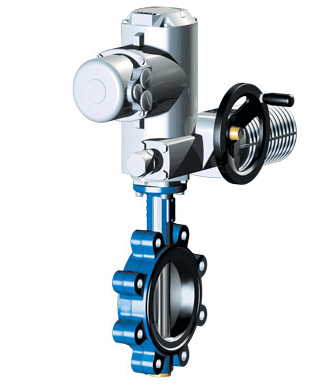

Rotary shutter 22.014 ARI-ZIVA®-ZE LUG PN16, EN-JS1030 (DN250 PN16 with el.priv. Auma SQ07.2, IP68 400 V capacity, conc.off.)

22.014 ARI-ZIVA®-ZE Rotary shutter with at. n/bolts PN16, EN-JS1030 c el/priv. Auma flanged

220140300G1 ARI-ZIVA®-ZE series 014 Rotary shutter with tides for bolts - industrial version

• Body material: : EN-JS1030 - ductile iron
• Nominal diameter : DN 300
• Nominal pressure : PN 16
• Type of connection : flanged
• Max. : 10 bar

Drive : Auma SQ10.2, IP68

• Voltage : 400 V 50Hz 3~
• Travel time : 16 seconds
• Closing pressure max. (bar) : 10.0

Additional equipment :

• a 1.000 Ω potentiometer complete with a gearbox for
• speed reading (gear device);
• dual limit switches on the go (tandem travel
• switches);
• dual torque limit switches (tandem
• torque switches)
